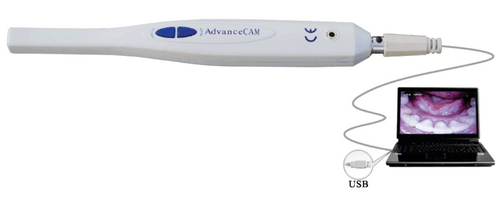

TPC Advance Cam Intraoral Corded Direct USB Camera System, Model AIC5899
TPC 2 year Warranty, Lifetime Phone Support
Specifications:
Imager - Sony 1/4" CCD
Resolution - 640 x 480
Frame Rate - 30 fps MAX
Capture Interface - TWAIN
Light Source - 6 White LEDs
PC Connection - USB 2.0 Port
Power - USB 5V DC
System Requirements:
Intel Pentium 4 1.5 GHZ or Higher
512 MB RAM or higher
Windows XP or higher
USB 2.0 port
Simplicity:
* Fixed focus lens (pin hole) allows the user to concentrate on the patient and not on focusing
* Lightweight handpiece is extremely easy to maneuver
* Simple touch on handpiece button will capture and save the image
* Non- inverted image allows for immediate and simple analysis
* Over 1,000 images may be stored in SD memory card
* 112 images may be stored in standard docking station
* Quick-disconnect camera module- lightweight, easy to transport
Portability:
* Small, compact components ensure the ease of portability between operatories
* Built-in docking station reduces number of components transported in multi-operatory settings
* Compact, built-in docking station can easily be installed into any existing dental unit
Versatility:
* Three Viewing Modes: Live, Freeze and Quad Split Screen. Can be connected to USB port or LCD/TV monitor. Displaying and saving images in computer or onto SD memory card. Images may be printed, stored, or forwarded electronically
* Easily move from single to quadrant, full-arch or full-face views
* USB, S-video, Composite Video (RCA), or VGA connection capabilities. The AdvanceCam integrates into your practice with or without a computer
* Wireless transmitter allows user to share camera between operatories without connecting to docking station. Four channels available for wireless operation
* Wireless remote control enables user to Zoom, Delete, Capture, and access memory
* SD memory card device can upgrade any existing analog camera to save images and print out
Options Available by Phone with Purchase of Camera System:
AIC5111 - Camera Mounted LCD Display 2.5’’
AIC500 - AdvanceCAM Barriers, 500/Box
AIC930 - AdvanceCAM Camera Holder
AIC928-USB - AdvanceCAM USB Camera Cable
